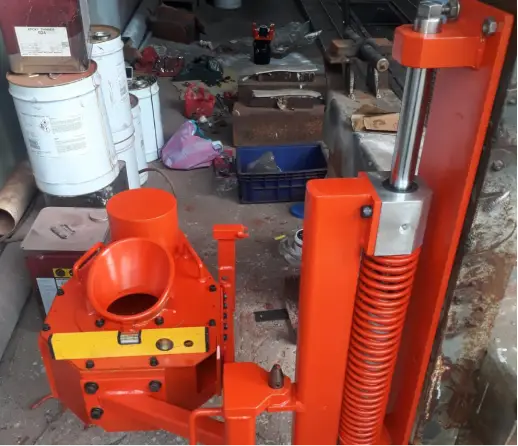

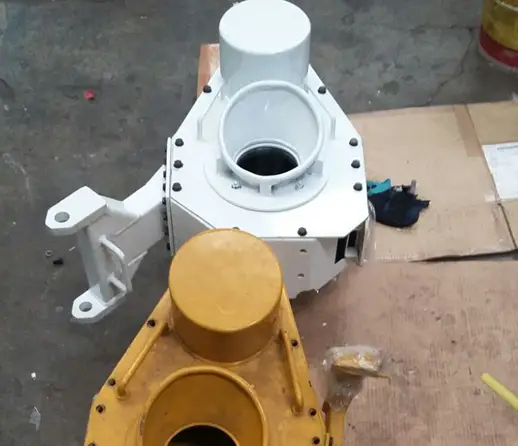

Rod Spinner is a hydraulic drilling accessory designed to accelerate and simplify the make-up and break-out process of drill rods during drilling operations. In many drilling activities, connecting and disconnecting drill rods can take significant time and effort when done manually. By using a rod spinner, these tasks can be performed more quickly and efficiently, helping to improve overall productivity and reduce operational downtime on site.
This equipment is engineered to accommodate a wide range of drill rod sizes without requiring jaw replacement. This feature provides greater flexibility for operators, allowing the tool to be used across different drilling setups without the need for frequent adjustments. As a result, it not only saves time during operations but also minimizes the risk of operational errors and enhances safety for drilling personnel.
Product Type: Hydraulic Rod Spinner
Rod Compatibility:
BQ, NQ, HQ, PQ, PWT, SW (cam jaw – no jaw change required)
Jaw System: Self-centering cam jaw
Gear & Sprocket Material: Hardened SCM415
Jaw Material: Tungsten carbide
Case & Bracket:
Laser-cut mild steel (prevents misaligned holes)

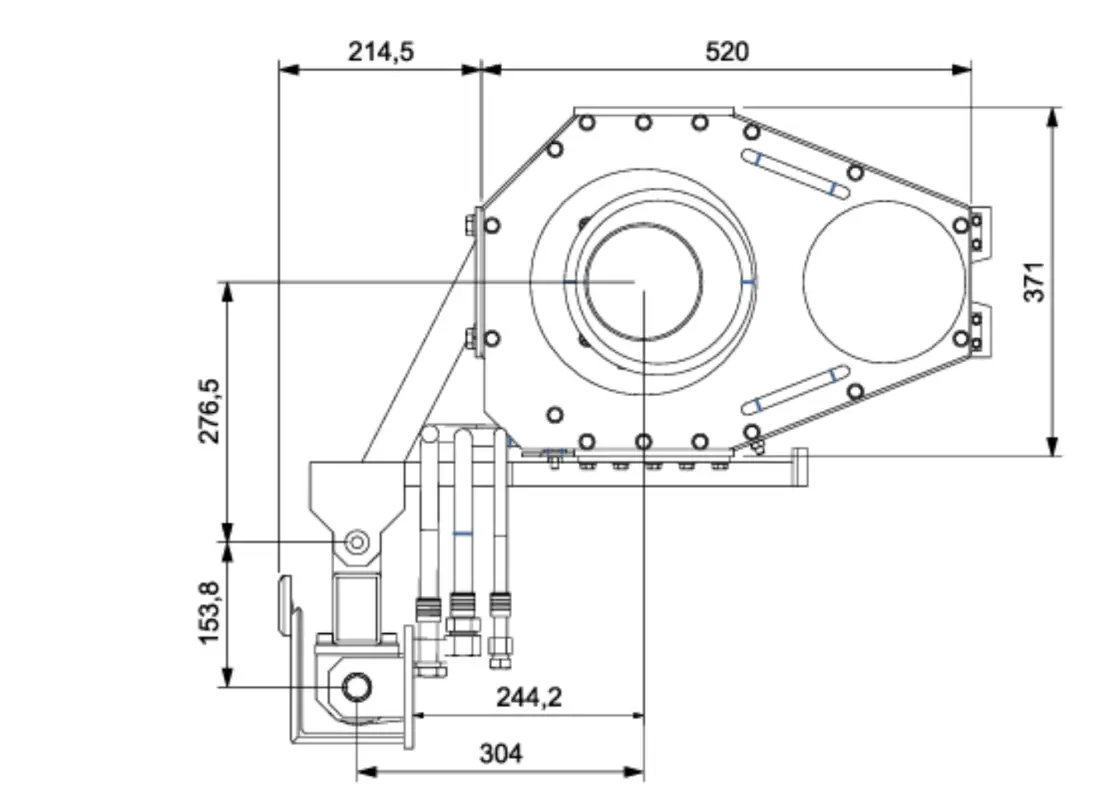

Unit Dimensions: 520 mm × 371 mm × 331 mm
Maximum Torque:
Breakout: 3,000 Nm
Make-up: 2,100 Nm
Maximum Speed: 100 rpm
Recommended Oil Flow: 100 lpm @ 2500 psi
Hydraulic Motor: OMH400
Additional Features:
Single lever control
Floating support arm ±200 mm travel
Adaptable to any mast
Swings away when not in use
