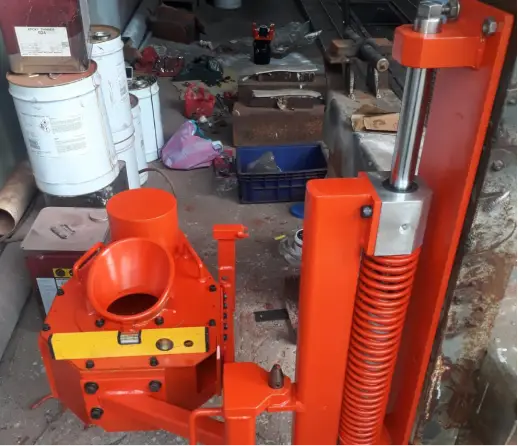

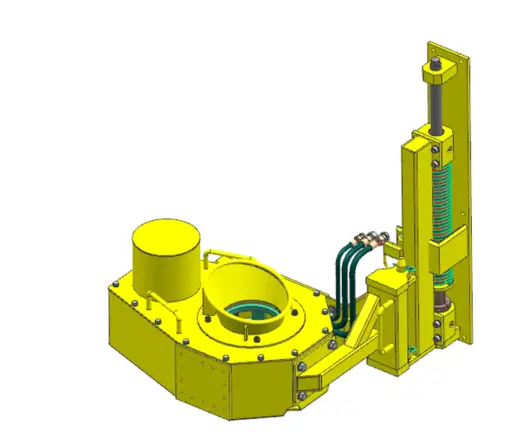

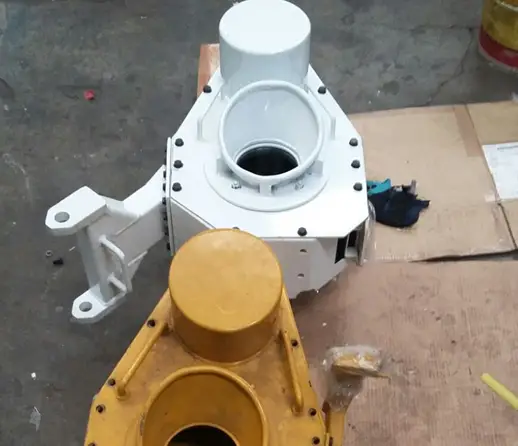

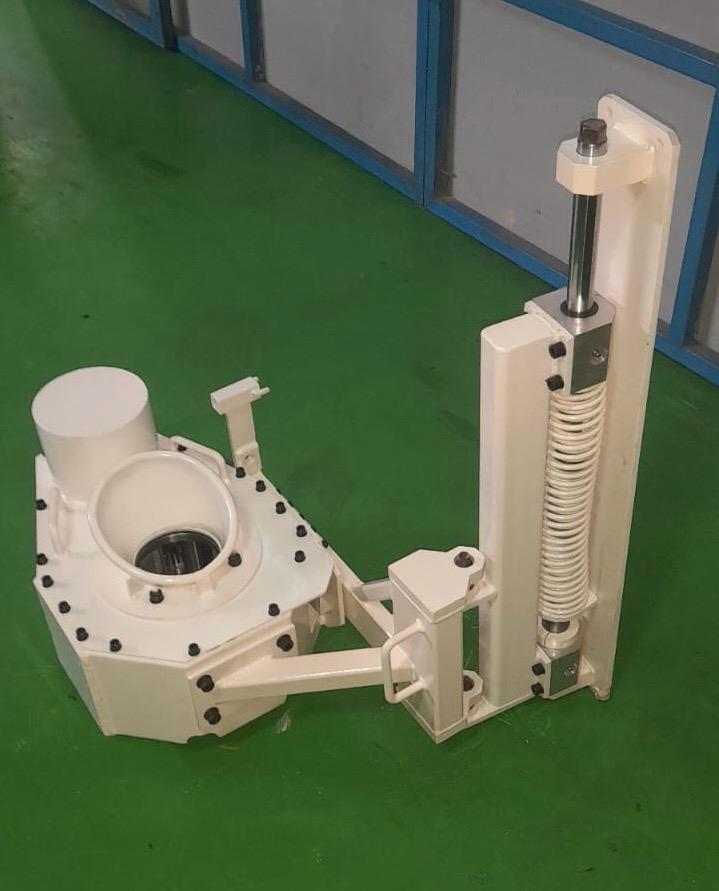

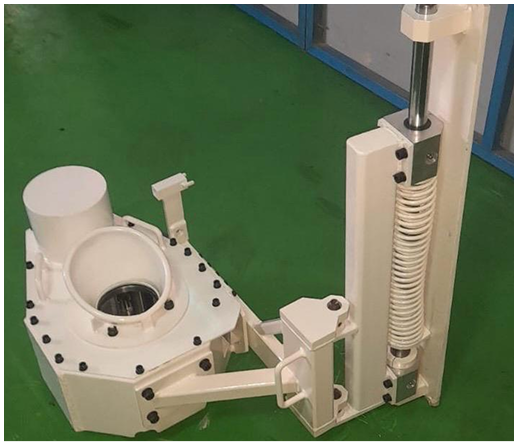

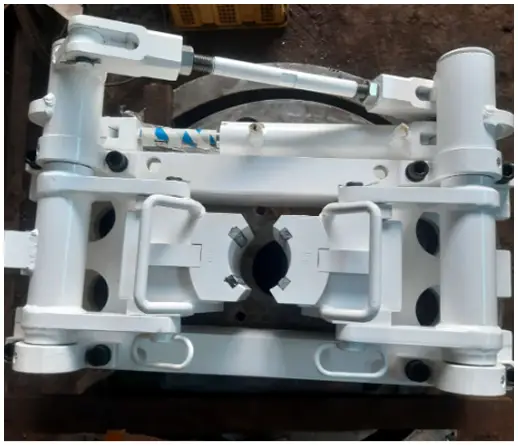

Rod Spinner RS10000 is a hydraulic drilling accessory designed to speed up and simplify make-up and break-out of drill rods during drilling operations. It supports a wide range of rod sizes without changing jaws, improving operational efficiency and operator safety.
Featuring a cam jaw system, hardened SCM415 gears and sprockets, and tungsten carbide jaws, RS10000 is built for durability and reliable performance in harsh mining and exploration environments.
Model: RS10000
Product Type: Hydraulic Rod Spinner
Rod Compatibility:
BQ, NQ, HQ, PQ, PWT, SW (cam jaw – no jaw change required)
Jaw System: Self-centering cam jaw
Gear & Sprocket Material: Hardened SCM415
Jaw Material: Tungsten carbide
Case & Bracket:
Laser-cut mild steel (prevents misaligned holes)

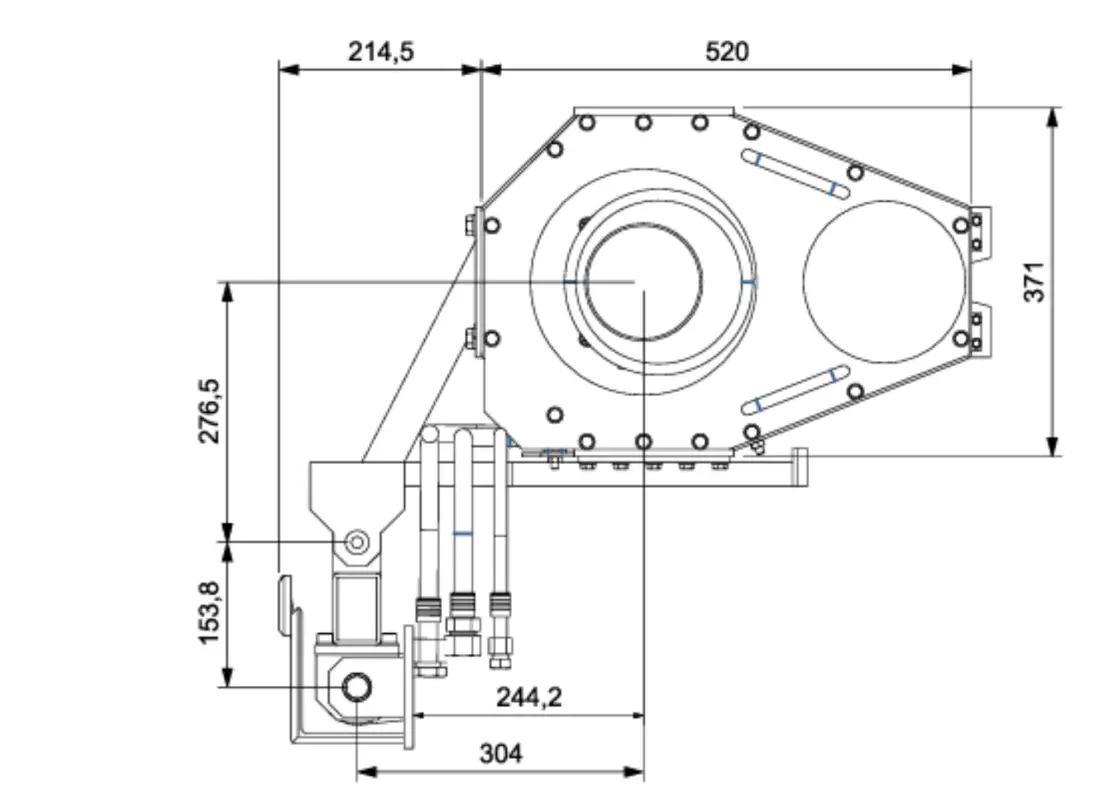

Unit Dimensions: 520 mm × 371 mm × 331 mm
Maximum Torque:
Breakout: 3,000 Nm
Make-up: 2,100 Nm
Maximum Speed: 100 rpm
Recommended Oil Flow: 100 lpm @ 2500 psi
Hydraulic Motor: OMH400
Additional Features:
Single lever control
Floating support arm ±200 mm travel
Adaptable to any mast
Swings away when not in use
