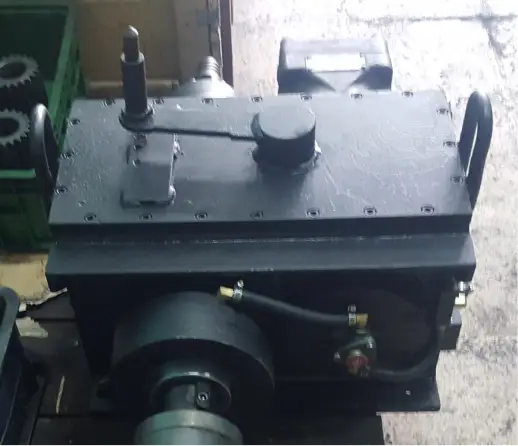

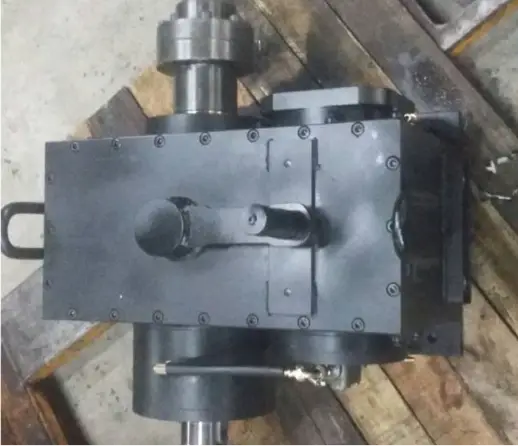

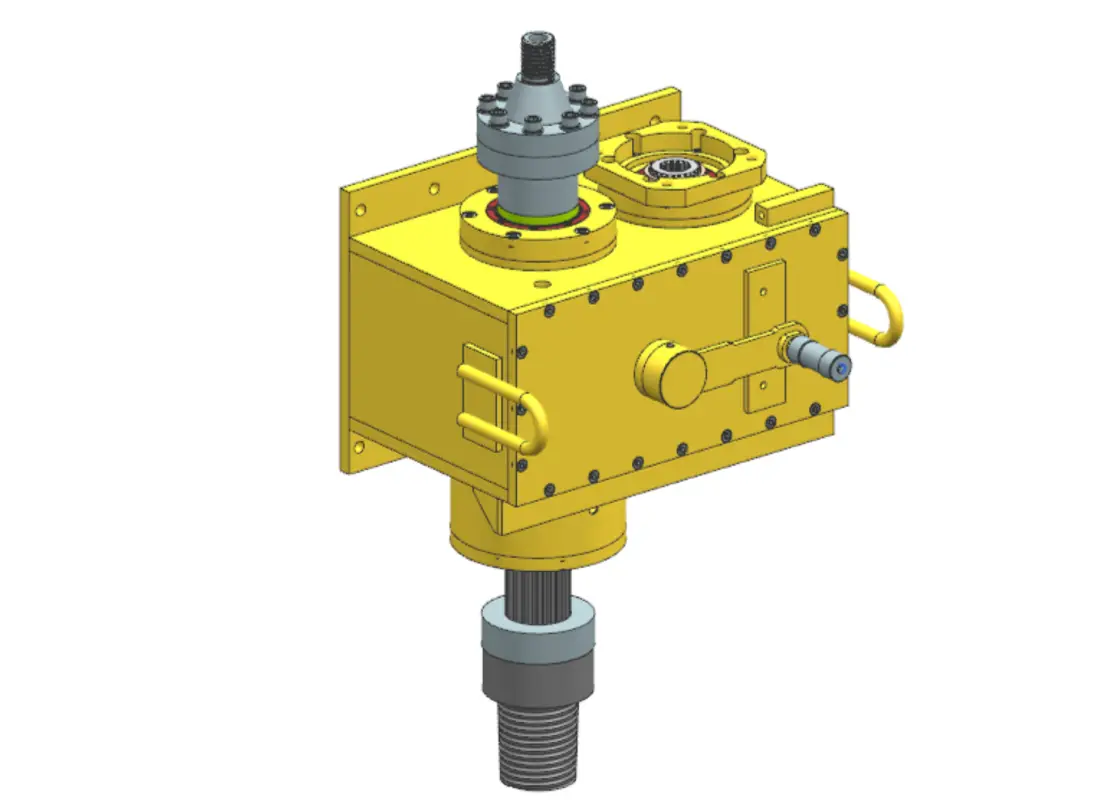

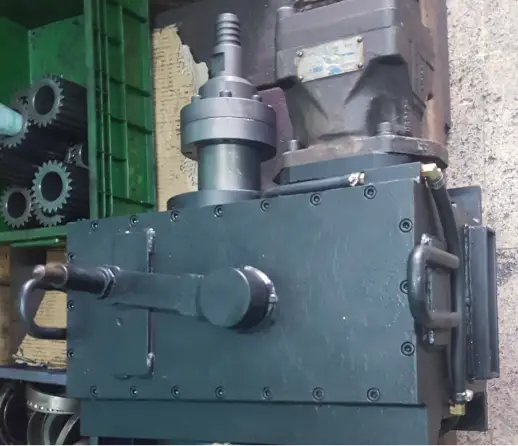

Rotation Head 500 is a hydraulic drilling rotation head engineered for high-performance and precision drilling applications. Featuring a splined floating spindle with 70 mm OD, it delivers stable rotation and reliable torque during drilling operations.
Equipped with a two-speed system (High & Low), Rotation Head 500 offers operational flexibility for different ground conditions. It is suitable for PQ, HQ, and NQ drilling standards and ideal for exploration and mining projects.
Product Type: Hydraulic Rotation Head
Spindle: Splined floating spindle
Spindle OD: 70 mm
Maximum Speed: 600 rpm
Speed System:
High: 1 : 1
Low: 1 : 1.77
Maximum Torque:
330 Nm (at 600 rpm, 1500 psi, flow rate 150 lpm)
Depth Capacity:
PQ: 300 meters
HQ: 450 meters
NQ: 600 meters
Unit Dimensions: 445 mm × 325 mm × 300 mm

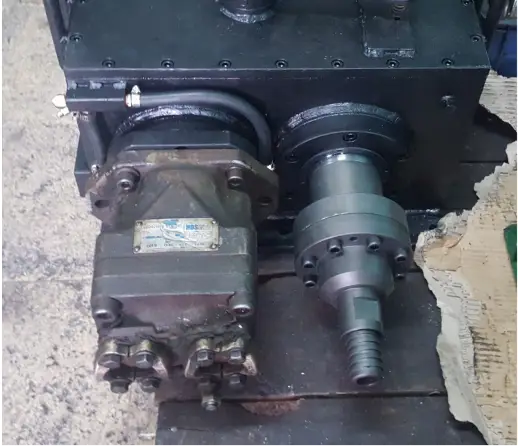

Hydraulic Motor: M4D-138-3N-00-B1-02
